Compact, all-in-one desktop GPON terminal

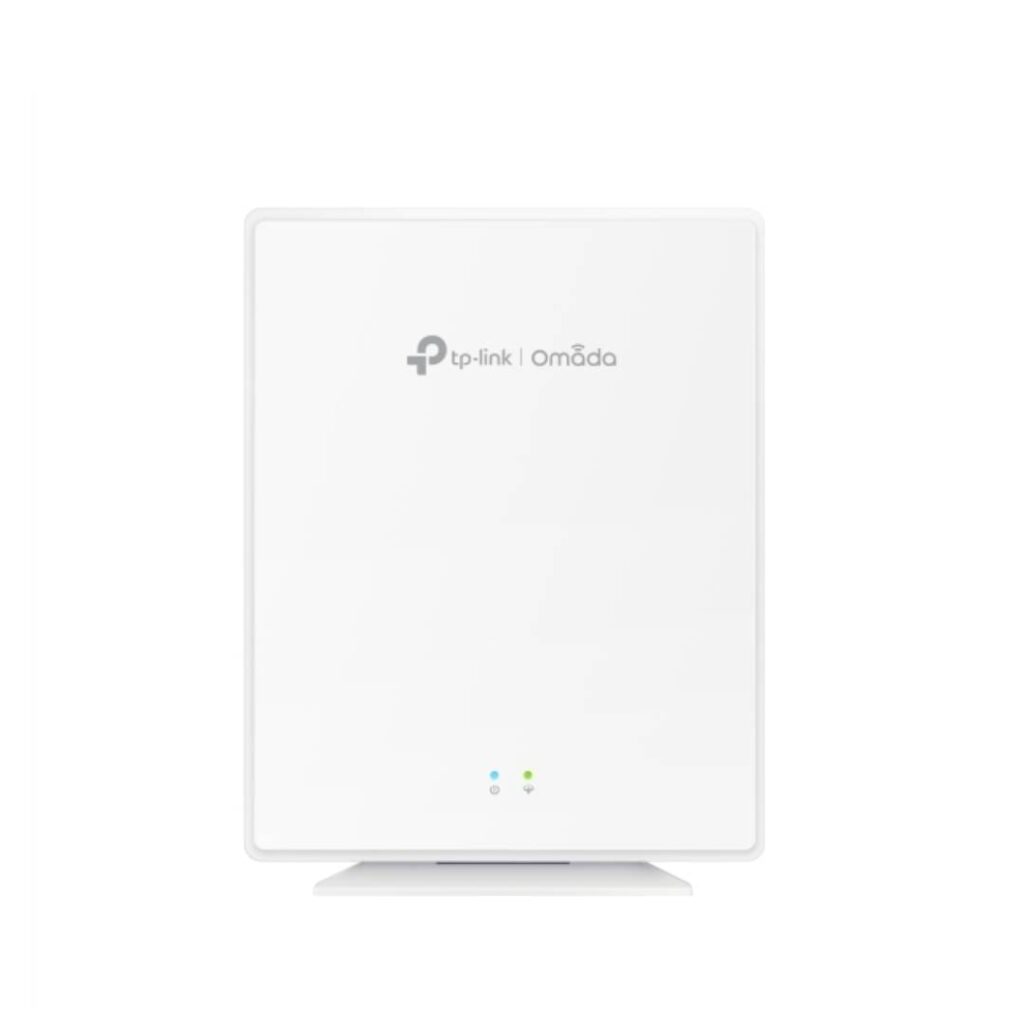

The TP-Link EAP610GP-Desktop is a compact, all-in-one desktop GPON terminal and Wi-Fi 6 access point that brings fiber-speed internet + fast wireless directly to hotel rooms, apartments, offices, and small clinics — no separate ONT box or router needed. With a built-in GPON ONT (up to 2.5 Gbps downstream), AX1800 dual-band Wi-Fi, 4 Gigabit LAN ports, and full Omada SDN management, it delivers a clean, high-performance network in every room.
Key Features
Integrated GPON ONT
Built-in Class B+ optical module supports up to 2.488 Gbps downstream / 1.244 Gbps upstream — eliminates the need for an extra ONT box.
True AX1800 Wi-Fi 6
1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz with OFDMA, 2×2 MU-MIMO, 160 MHz channels, and 1024-QAM for smooth 4K streaming and video calls.
4× Gigabit LAN Ports
Perfect for connecting IPTV boxes, VoIP phones, PCs, or gaming consoles right on the desk.
Compact Desktop Design
Sleek, low-profile housing with hidden cable routing and optional wall-mount — blends perfectly into any room.
Single-Cable PoE+ Powered
802.3at PoE+ from the switch room powers both the GPON module and Wi-Fi (no local power adapter required).
Full Omada SDN Integration
Centralized cloud/local management, Zero-Touch Provisioning, per-room VLANs, seamless roaming, Omada Mesh, captive portal, and free lifetime cloud access.
What’s in the Box
EAP610GP-Desktop Access Point / GPON Terminal
Power Cord (for non-PoE use)
RJ45 Ethernet Cable
Quick Installation Guide
(PoE injector not included — uses 802.3at PoE+ switch)
FAQs
Do I still need a separate ONT?
No — GPON terminal is built-in.
Can it be powered without PoE?
Yes — includes a 12V DC adapter for non-PoE installations.
Does it work with any fiber ISP?
Yes — supports standard GPON (OMCI/TR-069 authentication).
Can I mount it on the wall?
Yes — optional wall-mount slots on the bottom.
